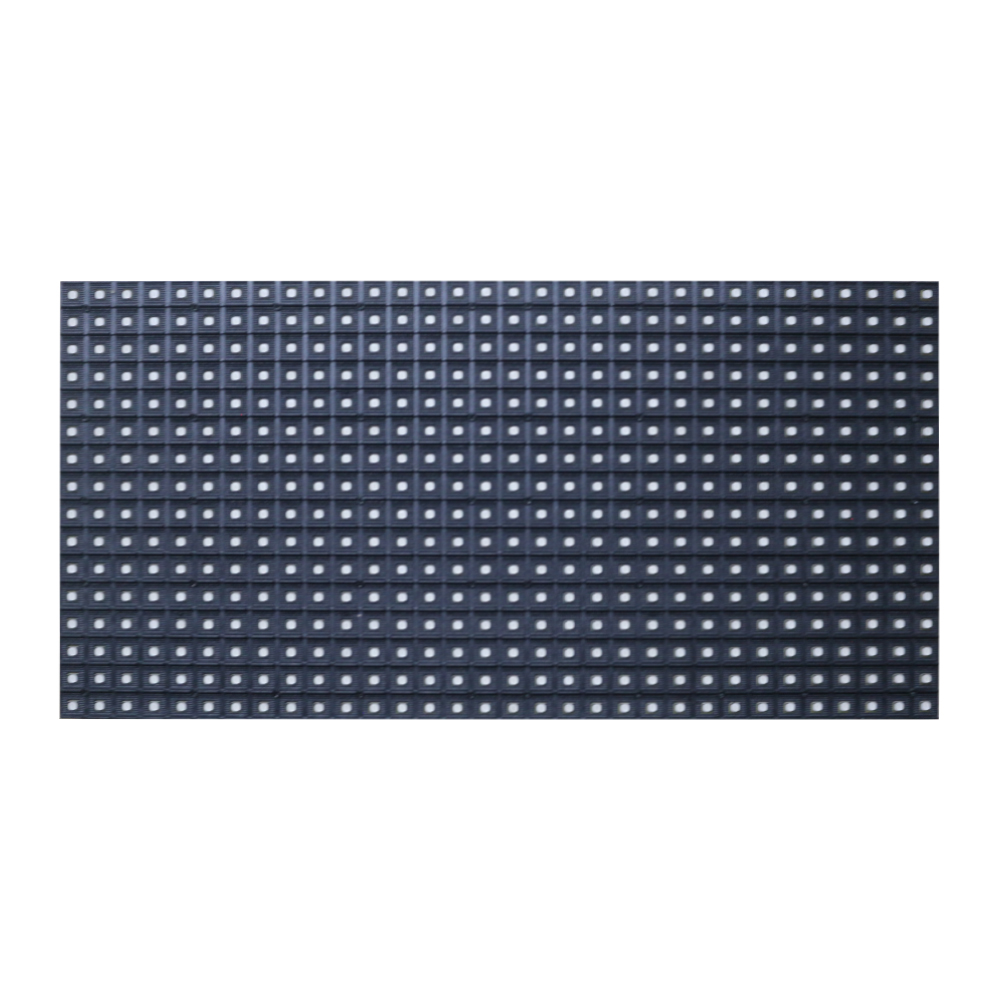

P10 Indoor
| • | Pixel Pitch | : | 10mm |
| • | Working Voltage | : | AC220V±10%; AC110V±10% |
| • | Power Consumption | : | Max 300W/sqm & Average 190W/sqm |
| • | Maximum Brightness | : | 1,400 cd/m² |
| • | Pixel Configuration | : | 1R1G1B |
| • | Pixel Size | : | 5.0 mm (circle) |
| • | Pixel Density | : | 10,000 Pixels/m² |
| • | Drive Mode | : | 1/8 or 1/4 Scanning |
| • | Grade Level | : | RGB 4096 grade/each |
| • | Best Viewing Distance | : | 8m ~ >150m (26ft ~ >492ft) |
| • | View Angle | : | H:160°, V:130° |
| • | Screen Lifetime | : | ?100,000 hours |
| • | Driving IC | : | MBI5024 |
| • | Protection Level | : | IP20 |
| • | Ambient Temperature | : | -10°C ~ +45°C (-14°F ~ 113°F) |
| • | Relative Humidity | : | - 10%~90% |
| • | Brightness Adjustment | : | 256 levels of each color (RGB) can be adjusted manually and 8 levels of each color can be adjusted automatically. |
| • | LED Module Size | : | 160mm x 160mm (6.3? x 6.3?) (16 pixels x 16 pixels) |
| • | LED Cabinet Size | : | 960mm x 960mm (38? x 38?) (96 pixels x 96 pixels) |
