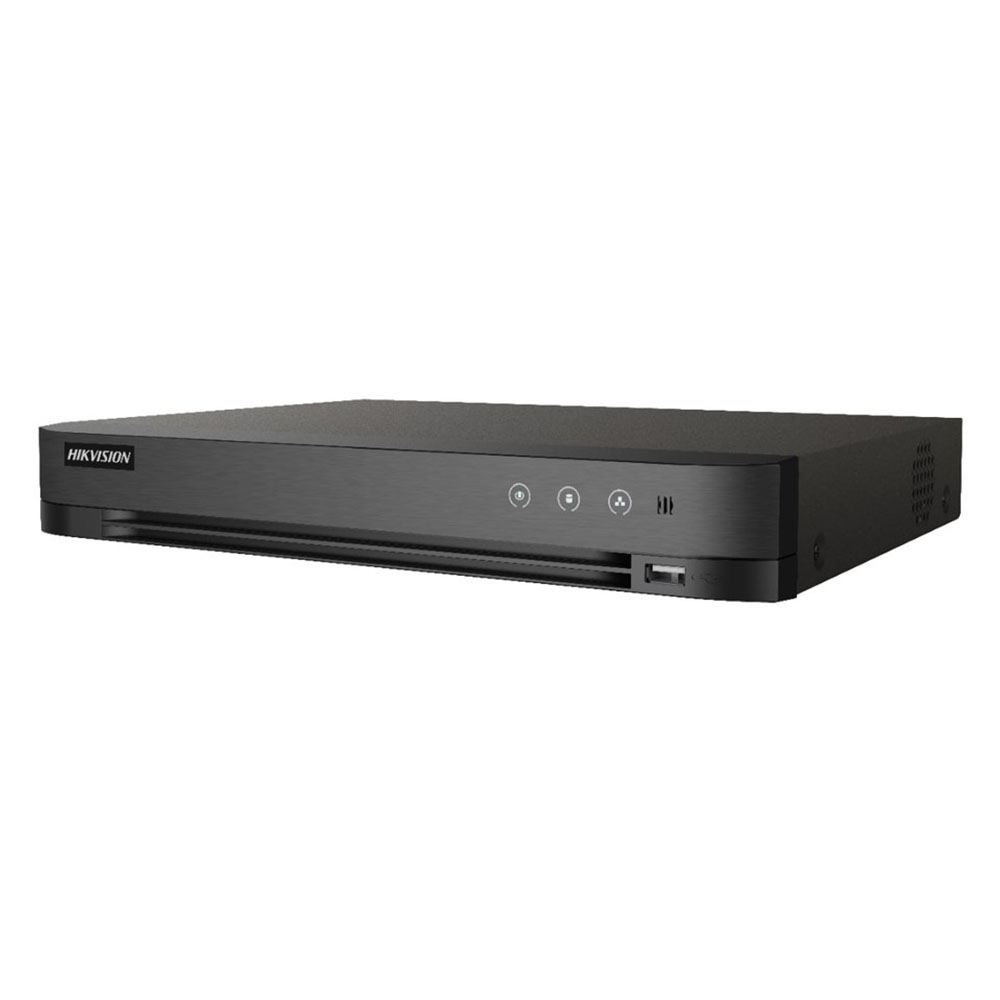

Hikvision DS-7208HQHI-K1/E

• Encoding Resolution : When 1080p lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Video Bit Rate : 32 Kbps to 6 Mbps
• Frame Rate : Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-
• Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Dual Stream : Support
• Stream Type : Video, Video & Audio
• Audio Compression : G.711u
• Audio Bit Rate : 64 Kbps
• Audio Input : 1-ch, RCA (2.0 Vp-p, 1 K?)?8-ch via coaxial cable
• Audio Output : 1-ch, RCA (Linear, 1 K?)
• Synchronous Playback : 8-ch
• IP Video Input : 2-ch (up to 10-ch)
Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps
Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
• HDTVI Input : 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
• HDCVI Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS Input : PAL/NTSC
• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
• Analog Video Input : 8-ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS Output : N/A
• HDMI/VGA Output : HDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output
VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connections : 64
• Network Interface : 1, RJ45 10M/100M self-adaptive Ethernet interface
• Capacity : Up to 10 TB capacity for each disk
• Serial Interface : N/A
• USB Interface : 2 × USB 2.0
• Alarm In/Out : N/A
• SATA : 1 SATA interface
• Consumption(Without HDD) : ? 9 W
• Working Humidity : 10% to 90%
• Power Supply : 12 VDC
• Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
• Dimensions(W × D × H) : 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
• Weights (Without HDD) : ? 1.6 kg (3.5 lb)
