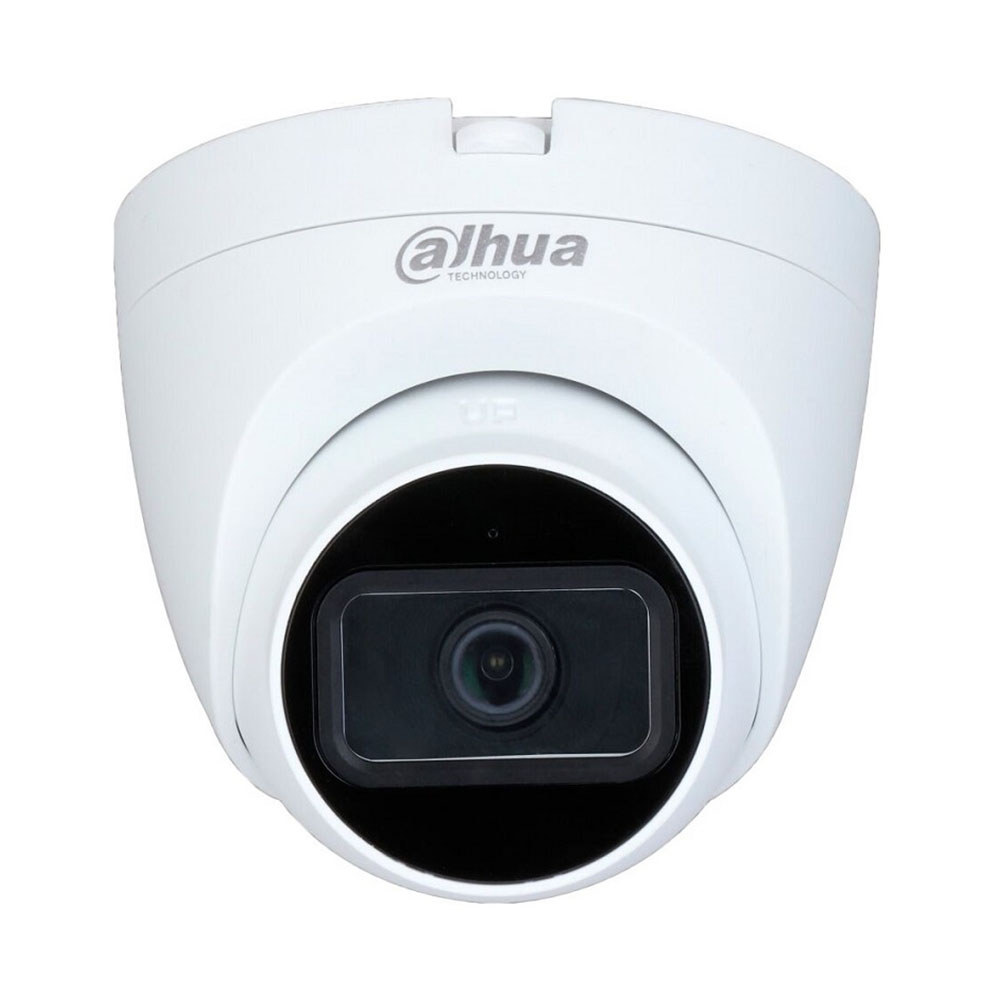

Dahua DH-HAC-HDW1500TRQN

• Image Sensor : 1/2.7 inch CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Pixel : 5MP
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
• S/N Ratio : >65 dB
• Min. Illumination : 0.005 Lux/F1.6 30IRE, 0 Lux IR on
• Illumination Distance : 25m?82.0 ft.)
• Illuminator On/Off Control : Auto; manual
• Illuminator Number : 2
• Pan/Tilt/Rotation Range : Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
• Lens Type : Fixed-focal
• Mount Type : M12
• Focal Length : 2.8 mm; 3.6 mm
• Max. Aperture : F1.6
• Field of View : 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical)
3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical)
• Iris Type : Fixed iris
• Close Focus Distance : 2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.2 ft)
• Lens : 2.8 mm
3.6 mm
• Detect : 63.6 m (208.7 ft)
80 m (262.5 ft)
• Observe : 25.4 m (83.3 ft)
32 m (105.0 ft)
• Recognize : 12.7 m (41.7 ft)
16 m (52.5 ft)
• Identify : 6.4 m (21.0ft)
8 m (26.2 ft)
• Frame Rate : CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
• Resolution : 5M (2880 × 1620)
4M (2560 × 1440)
1080P (1920 × 1080)
960 H (960 × 576/960 × 480)
• Day/Night : Auto switch by ICR
• BLC : BLC/HLC/DWDR
• WDR : DWDR
• White Balance : Auto; manual
• Gain Control : Auto; manual
• Noise Reduction : 2D NR
• Smart IR : Yes
• Mirror : Off/On
• Privacy Masking : Off/On (8 area, rectangle)
• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Audio Interface : One channel built-in mic (-A)
• Power Supply : 12V ±30% DC
• Power Consumption : Max 3.0W (12V DC, IR on)
• Operating Temperature : -40°C to +50°C (-40°F to 122°F);<95% (non-condensation)
• Storage Temperature : -40°C to +50°C (-40°F to 122°F);< 95% (non-condensation)
• Protection Grade : IP50
• Casing : Plastic
• Dimensions : ?97.1 mm × 93.0 mm (?3.82" × 3.66")
• Net Weight : 0.17 kg (0.37lb))
• Gross Weight : 0.23 kg (0.51lb)
