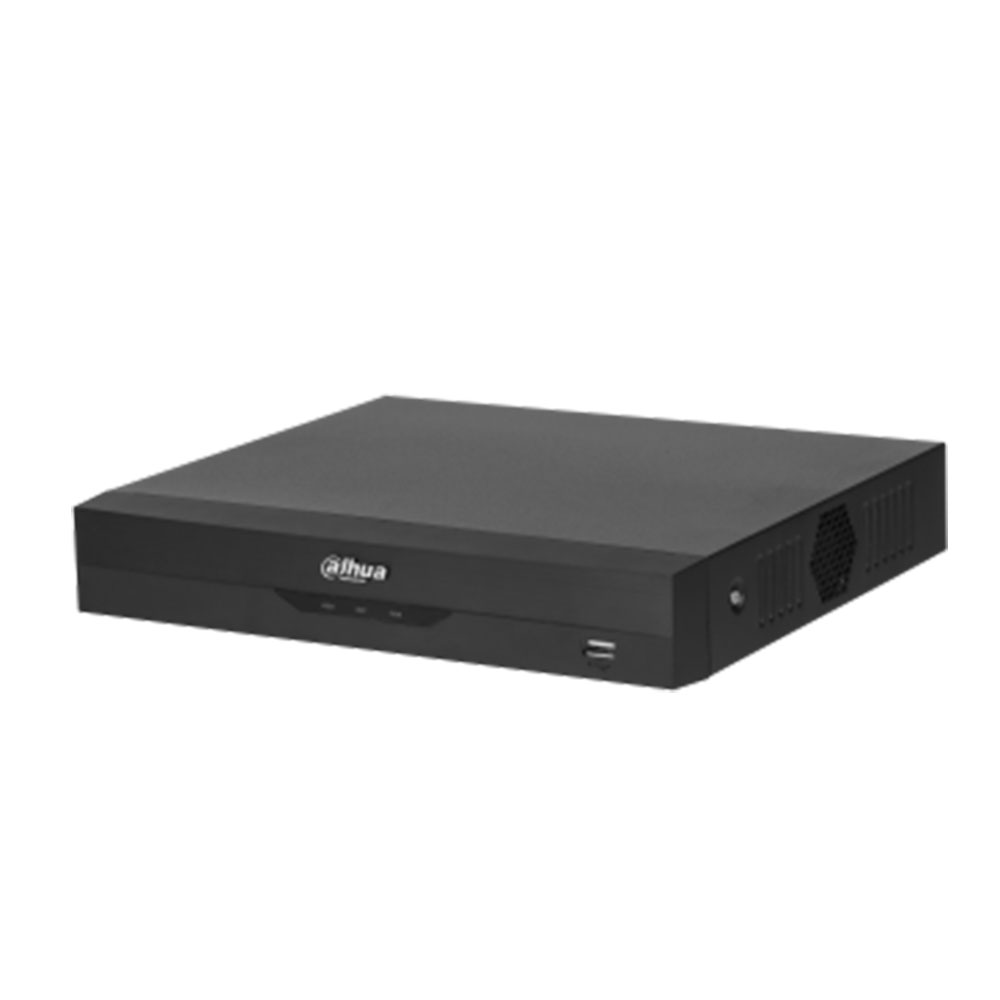

Dahua XVR5104HS-I3

• Main Processor : Industrial-grade processor
• Operating System : Embedded Linux
• Operating Interface : Web; Local GUI
• Perimeter Performance AI by Recorder (Number of Channels) : Advanced Model : 1 channel, 10 IVS for each channel
General Model : 2 channels, 10 IVS for each channel
• Face Attributes : Gender; age group; glasses; expressions; face mask; beard
• Face Detection Performance of AI by Recorder (Number of Channels) : 1 channel, (up to 8 face images/s)
• Face Database Capacity : Up to 10 face databases and 10,000 images.
• Face Recognition Performance of AI by Recorder (Number of Channels) : 1 channel
• SMD Plus by Recorder : 4-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
• Analog Camera Input : 4 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
• Camera Input : 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
4. CVBS: PAL/NTSC
• IP Camera Input : Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
• Encoding Capacity : Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15fps)
• Dual-stream : Yes
• Video Bit Rate : 32 kbps–6144 kbps
• Audio Sampling : 8 kHz, 16 bit
• Audio Bit Rate : 64 kbps
• Video Output : 1 HDMI, 1 VGA
HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display : When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
• Third-party Camera Access : ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
• Video Compression : AI Coding; H.265+; H.265; H.264+; H.264
• Audio Compression : G.711a; G.711u; PCM
• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 21.06; CGI Conformant
• Browser : Chrome
IE9 or later
Firefox
• Network Mode : Single-address mode
• Record Mode : General, motion detection; intelligent; alarm; POS
• Recording Playback : 1/4
• Backup Method : USB device and network
• Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
• General Alarm : Motion detection, video loss, tampering
• Anomaly Alarm : No disk, disk error, low space, offline, ip conflict, MAC conflict
• Intelligent Alarm : Face detection, face recognition, perimeter protection
• Alarm Linkage : Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
• Audio Input : 1-channel RCA
4-channel BNC (Coaxial Audio)
• Audio Output : 1-channel RCA
• Two-way Talk : Yes (share the same audio input with the first channel)
• HDD Interface : 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
• RS-485 : 1 port, for PTZ control
• USB : 2 USB ports (USB 2.0)
• HDMI : 1
• VGA : 1
• Network Port : 1 (10/100 Mbps Ethernet port, RJ-45)
• Power Supply : 12 VDC, 1.5 A
• Power Consumption : <4 W
• Net Weight : 1.0 kg (2.20 lb)
• Gross Weight : 1.4 kg (3.08 lb)
• Product Dimensions : 260.0 mm × 237.9 mm × 47.6 mm (10.24' × 9.37' × 1.87') (W × D × H)
• Packaging Dimensions : 333.0 mm × 315.0 mm × 89.0 mm (13.11" × 12.40 × 3.50") (W× D × H)
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity : 0%–90% (RH)
• Installation : Desktop
